Thermal Power Plant Layout

Sunday, May 26, 2013 | Labels: , , , | |

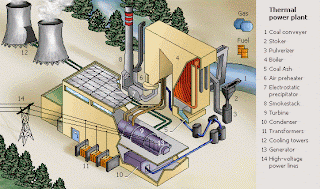

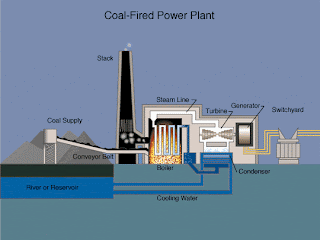

The above diagram is the lay out of a simplified thermal power plant and the below is also diagram of a thermal power plant.

The above diagram shows the simplest arrangement of Coal fired (Thermal) power plant.


Main parts of the plant are
1. Coal conveyor 2. Stoker 3. Pulverizer 4. Boiler 5. Coal ash 6. Air preheater 7. Electrostatic precipitator 8. Smoke stack 9. Turbine 10. Condenser 11. Transformers 12. Cooling towers
13. Generator 14. High - votge power lines

Basic Operation :A thermal power plant basically works on Rankine cycle.
Coal conveyor : This is a belt type of arrangement.With this coal is transported from coal storage place in power plant to the place near by boiler.
Stoker : The coal which is brought near by boiler has to put in boiler furnance for combustion.This stoker is a mechanical device for feeding coal to a furnace.

Pulverizer : The coal is put in the boiler after pulverization.For this pulverizer is used.A pulverizer is a device for grinding coal for combustion in a furnace in a power plant.

Types of Pulverizers
Ball and Tube Mill Ball mill is a pulverizer that consists of a horizontal rotating cylinder, up to three diameters in length, containing a charge of tumbling or cascading steel balls, pebbles, or rods.
Tube mill is a revolving cylinder of up to five diameters in length used for fine pulverization of ore, rock, and other such materials; the material, mixed with water, is fed into the chamber from one end, and passes out the other end as slime.
Ring and Ball
This type consists of two rings separated by a series of large balls. The lower ring rotates, while the upper ring presses down on the balls via a set of spring and adjuster assemblies. Coal is introduced into the center or side of the pulverizer (depending on the design) and is ground as the lower ring rotates causing the balls to orbit between the upper and lower rings. The coal is carried out of the mill by the flow of air moving through it. The size of the coal particals released from the grinding section of the mill is determined by a classifer separator. These mills are typically produced by B&W (Babcock and Wilcox).

Boiler : Now that pulverized coal is put in boiler furnance.Boiler is an enclosed vessel in which water is heated and circulated until the water is turned in to steam at the required pressure.

Coal is burned inside the combustion chamber of boiler.The products of combustion are nothing but gases.These gases which are at high temperature vaporize the water inside the boiler to steam.Some times this steam is further heated in a superheater as higher the steam pressure and temperature the greater efficiency the engine will have in converting the heat in steam in to mechanical work. This steam at high pressure and tempeture is used directly as a heating medium, or as the working fluid in a prime mover to convert thermal energy to mechanical work, which in turn may be converted to electrical energy. Although other fluids are sometimes used for these purposes, water is by far the most common because of its economy and suitable thermodynamic characteristics.

Classification of Boilers
Bolilers are classified as
Fire tube boilers : In fire tube boilers hot gases are passed through the tubes and water surrounds these tubes. These are simple,compact and rugged in construction.Depending on whether the tubes are vertical or horizontal these are further classified as vertical and horizontal tube boilers.In this since the water volume is more,circulation will be poor.So they cant meet quickly the changes in steam demand.High pressures of steam are not possible,maximum pressure that can be attained is about 17.5kg/sq cm.Due to large quantity of water in the drain it requires more time for steam raising.The steam attained is generally wet,economical for low pressures.The outut of the boiler is also limited.






Water tube boilers : In these boilers water is inside the tubes and hot gases are outside the tubes.They consists of drums and tubes.They may contain any number of drums (you can see 2 drums in fig).Feed water enters the boiler to one drum (here it is drum below the boiler).This water circulates through the tubes connected external to drums.Hot gases which surrounds these tubes wil convert the water in tubes in to steam.This steam is passed through tubes and collected at the top of the drum since it is of light weight.So the drums store steam and water (upper drum).The entire steam is collected in one drum and it is taken out from there (see in laout fig).As the movement of water in the water tubes is high, so rate of heat transfer also becomes high resulting in greater efficiency.They produce high pressure , easily accessible and can respond quickly to changes in steam demand.These are also classified as vertical,horizontal and inclined tube depending on the arrangement of the tubes.These are of less weight and less liable to explosion.Large heating surfaces can be obtained by use of large number of tubes.We can attain pressure as high as 125 kg/sq cm and temperatures from 315 to 575 centigrade.

Superheater : Most of the modern boliers are having superheater and reheater arrangement. Superheater is a component of a steam-generating unit in which steam, after it has left the boiler drum, is heated above its saturation temperature. The amount of superheat added to the steam is influenced by the location, arrangement, and amount of superheater surface installed, as well as the rating of the boiler. The superheater may consist of one or more stages of tube banks arranged to effectively transfer heat from the products of combustion.Superheaters are classified as convection , radiant or combination of these.

Reheater : Some of the heat of superheated steam is used to rotate the turbine where it loses some of its energy.Reheater is also steam boiler component in which heat is added to this intermediate-pressure steam, which has given up some of its energy in expansion through the high-pressure turbine. The steam after reheating is used to rotate the second steam turbine (see Layout fig) where the heat is converted to mechanical energy.This mechanical energy is used to run the alternator, which is coupled to turbine , there by generating elecrical energy.

Condenser : Steam after rotating staem turbine comes to condenser.Condenser refers here to the shell and tube heat exchanger (or surface condenser) installed at the outlet of every steam turbine in Thermal power stations of utility companies generally. These condensers are heat exchangers which convert steam from its gaseous to its liquid state, also known as phase transition. In so doing, the latent heat of steam is given out inside the condenser. Where water is in short supply an air cooled condenser is often used. An air cooled condenser is however significantly more expensive and cannot achieve as low a steam turbine backpressure (and therefore less efficient) as a surface condenser.

The purpose is to condense the outlet (or exhaust) steam from steam turbine to obtain maximum efficiency and also to get the condensed steam in the form of pure water, otherwise known as condensate, back to steam generator or (boiler) as boiler feed water.

Why it is required ?
The steam turbine itself is a device to convert the heat in steam to mechanical power. The difference between the heat of steam per unit weight at the inlet to turbine and the heat of steam per unit weight at the outlet to turbine represents the heat given out (or heat drop) in the steam turbine which is converted to mechanical power. The heat drop per unit weight of steam is also measured by the word enthalpy drop. Therefore the more the conversion of heat per pound (or kilogram) of steam to mechanical power in the turbine, the better is its performance or otherwise known as efficiency. By condensing the exhaust steam of turbine, the exhaust pressure is brought down below atmospheric pressure from above atmospheric pressure, increasing the steam pressure drop between inlet and exhaust of steam turbine. This further reduction in exhaust pressure gives out more heat per unit weight of steam input to the steam turbine, for conversion to mechanical power. Most of the heat liberated due to condensing, i.e., latent heat of steam, is carried away by the cooling medium. (water inside tubes in a surface condenser, or droplets in a spray condenser (Heller system) or air around tubes in an air-cooled condenser).

Condensers are classified as (i) Jet condensers or contact condensers (ii) Surface condensers.
In jet condensers the steam to be condensed mixes with the cooling water and the temperature of the condensate and the cooling water is same when leaving the condenser; and the condensate cant be recovered for use as feed water to the boiler; heat transfer is by direct conduction.

In surface condensers there is no direct contact between the steam to be condensed and the circulating cooling water. There is a wall interposed between them through heat must be convectively transferred.The temperature of the condensate may be higher than the temperature of the cooling water at outlet and the condnsate is recovered as feed water to the boiler.Both the cooling water and the condensate are separetely with drawn.Because of this advantage surface condensers are used in thermal power plants.Final output of condenser is water at low temperature is passed to high pressure feed water heater,it is heated and again passed as feed water to the boiler.Since we are passing water at high temperature as feed water the temperature inside the boiler does not dcrease and boiler efficincy also maintained.

Cooling Towers :The condensate (water) formed in the condeser after condensation is initially at high temperature.This hot water is passed to cooling towers.It is a tower- or building-like device in which atmospheric air (the heat receiver) circulates in direct or indirect contact with warmer water (the heat source) and the water is thereby cooled (see illustration). A cooling tower may serve as the heat sink in a conventional thermodynamic process, such as refrigeration or steam power generation, and when it is convenient or desirable to make final heat rejection to atmospheric air. Water, acting as the heat-transfer fluid, gives up heat to atmospheric air, and thus cooled, is recirculated through the system, affording economical operation of the process.

Two basic types of cooling towers are commonly used. One transfers the heat from warmer water to cooler air mainly by an evaporation heat-transfer process and is known as the evaporative or wet cooling tower.

Evaporative cooling towers are classified according to the means employed for producing air circulation through them: atmospheric, natural draft, and mechanical draft. The other transfers the heat from warmer water to cooler air by a sensible heat-transfer process and is known as the nonevaporative or dry cooling tower.

Nonevaporative cooling towers are classified as air-cooled condensers and as air-cooled heat exchangers, and are further classified by the means used for producing air circulation through them. These two basic types are sometimes combined, with the two cooling processes generally used in parallel or separately, and are then known as wet-dry cooling towers.

Evaluation of cooling tower performance is based on cooling of a specified quantity of water through a given range and to a specified temperature approach to the wet-bulb or dry-bulb temperature for which the tower is designed. Because exact design conditions are rarely experienced in operation, estimated performance curves are frequently prepared for a specific installation, and provide a means for comparing the measured performance with design conditions.

Economiser : Flue gases coming out of the boiler carry lot of heat.Function of economiser is to recover some of the heat from the heat carried away in the flue gases up the chimney and utilize for heating the feed water to the boiler.It is placed in the passage of flue gases in between the exit from the boiler and the entry to the chimney.The use of economiser results in saving in coal consumption , increase in steaming rate and high boiler efficiency but needs extra investment and increase in maintenance costs and floor area required for the plant.This is used in all modern plants.In this a large number of small diameter thin walled tubes are placed between two headers.Feed water enters the tube through one header and leaves through the other.The flue gases flow out side the tubes usually in counter flow.

Air preheater : The remaining heat of flue gases is utilised by air preheater.It is a device used in steam boilers to transfer heat from the flue gases to the combustion air before the air enters the furnace. Also known as air heater; air-heating system. It is not shown in the lay out.But it is kept at a place near by where the air enters in to the boiler.
The purpose of the air preheater is to recover the heat from the flue gas from the boiler to improve boiler efficiency by burning warm air which increases combustion efficiency, and reducing useful heat lost from the flue. As a consequence, the gases are also sent to the chimney or stack at a lower temperature, allowing simplified design of the ducting and stack. It also allows control over the temperature of gases leaving the stack (to meet emissions regulations, for example).After extracting heat flue gases are passed to elctrostatic precipitator.
Electrostatic precipitator : It is a device which removes dust or other finely divided particles from flue gases by charging the particles inductively with an electric field, then attracting them to highly charged collector plates. Also known as precipitator. The process depends on two steps. In the first step the suspension passes through an electric discharge (corona discharge) area where ionization of the gas occurs. The ions produced collide with the suspended particles and confer on them an electric charge. The charged particles drift toward an electrode of opposite sign and are deposited on the electrode where their electric charge is neutralized. The phenomenon would be more correctly designated as electrodeposition from the gas phase.
The use of electrostatic precipitators has become common in numerous industrial applications. Among the advantages of the electrostatic precipitator are its ability to handle large volumes of gas, at elevated temperatures if necessary, with a reasonably small pressure drop, and the removal of particles in the micrometer range. Some of the usual applications are: (1) removal of dirt from flue gases in steam plants; (2) cleaning of air to remove fungi and bacteria in establishments producing antibiotics and other drugs, and in operating rooms; (3) cleaning of air in ventilation and air conditioning systems; (4) removal of oil mists in machine shops and acid mists in chemical process plants; (5) cleaning of blast furnace gases; (6) recovery of valuable materials such as oxides of copper, lead, and tin; and (7) separation of rutile from zirconium sand.
Smoke stack :A chimney is a system for venting hot flue gases or smoke from a boiler, stove, furnace or fireplace to the outside atmosphere. They are typically almost vertical to ensure that the hot gases flow smoothly, drawing air into the combustion through the chimney effect (also known as the stack effect). The space inside a chimney is called a flue. Chimneys may be found in buildings, steam locomotives and ships. In the US, the term smokestack (colloquially, stack) is also used when referring to locomotive chimneys. The term funnel is generally used for ship chimneys and sometimes used to refer to locomotive chimneys.Chimneys are tall to increase their draw of air for combustion and to disperse pollutants in the flue gases over a greater area so as to reduce the pollutant concentrations in compliance with regulatory or other limits.
Generator : An alternator is an electromechanical device that converts mechanical energy to alternating current electrical energy. Most alternators use a rotating magnetic field. Different geometries - such as a linear alternator for use with stirling engines - are also occasionally used. In principle, any AC generator can be called an alternator, but usually the word refers to small rotating machines driven by automotive and other internal combustion engines.
Transformers :It is a device that transfers electric energy from one alternating-current circuit to one or more other circuits, either increasing (stepping up) or reducing (stepping down) the voltage. Uses for transformers include reducing the line voltage to operate low-voltage devices (doorbells or toy electric trains) and raising the voltage from electric generators so that electric power can be transmitted over long distances. Transformers act through electromagnetic induction; current in the primary coil induces current in the secondary coil. The secondary voltage is calculated by multiplying the primary voltage by the ratio of the number of turns in the secondary coil to that in the primary.
